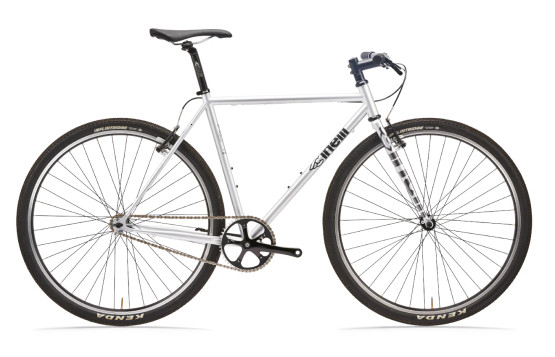

Tutto Plus is your do-everything high-performance urbantrack frame: it can quickly morph from messenger work bike complete with front rack to crit race bike to single-speed cross machine to indestructible commuter. Obviously made with Columbus Cromor steel tubes.
HEAVY LOAD CAPACITY
The front steel fork with 45mm rake has a heavy load original segmented crown design with the possibility to assemble a front
carrier together with 45c tyre passage and front brake mounts.
WIDE CLEARANCE

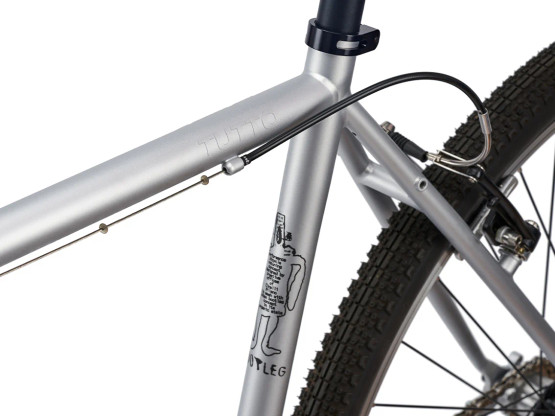

Frame and fork clear up to 45c tyres allowing to use both slick as well as cyclocross/gravel tyres. Internal cable routing for the rear brake.
ALL IN ONE

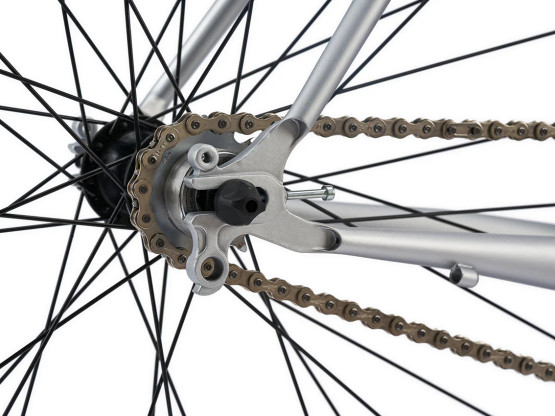

The rear stays has been completely redesigned to allow fitting of the rear derailleur and thus increasing the possibilities of uses of the frame. The track-type dropouts are equipped with a peduncle to fit the rear derailleur and the OLD is 130mm, so that the traditional road rear hub can also be used.
COLOR: Crystal Blue
SIZE: S (52)
FRAME: COLUMBUS Cromor tubeset
HEADSET: EC 34/28,6 | EC 34/30
SEAT POST: Ø27,2mm
SEAT CLAMP: Ø 29,8mm
BB STANDARD: BSA 68mm
CABLE ROUTING: Rear brake internal routing / Continuous wire
TIRE CLEARANCE: up to 700x45c
FORK: Columbus Steel 1-1/8"
FORK WEIGHT: 1150g
FRAME WEIGHT: Frame 2100g
BRAKES STANDARD: Front and Rear removable V-Brake pivot studs
HUB SPACING: Front QR 100mm Rear QR 130mm
FEATURES: Front rack middle fork eyelet / Front light hole / Front&Rear Fender / F&R Derailleur compatibility
STEM: CINELLI 6061 Stem / Ø 31,8 / Angle 6° / H 40mm - Size 90 (S/M) 100 (L/XL)
HANDLEBAR: CINELLI Flat Handlebar / Ø 31,8 / 15mm Rise / L680mm
CRANKSET: LASCO CNC / 46T / 170mm
SEATPOST: CINELLI 6061 Seat Post/ Ø27,2 / L350
TAPE: VELO grip rubber
BOTTOM BRACKET: FSA / BSA 68mm
BRAKES: TEKTRO (CL-330TS) Lever / Ø 22,2 / TEKTRO (C-310) V-Brake
CASSETTE: SHINING / Single Speed 18T
WHEELS: SHINING / 700c / Flip Flop Hub
TYRES: KENDA - KWICK-TRAX / 700x35c
HEAD SET: External 1'-1/8
CHAIN: KMC
SADDLE: CINELLI SSM Monza Start / Steel rail / 145mm
